Tapdrum 2010
32 basic input triggers board :
operating voltage : 5 VDC
input : 32 inputs

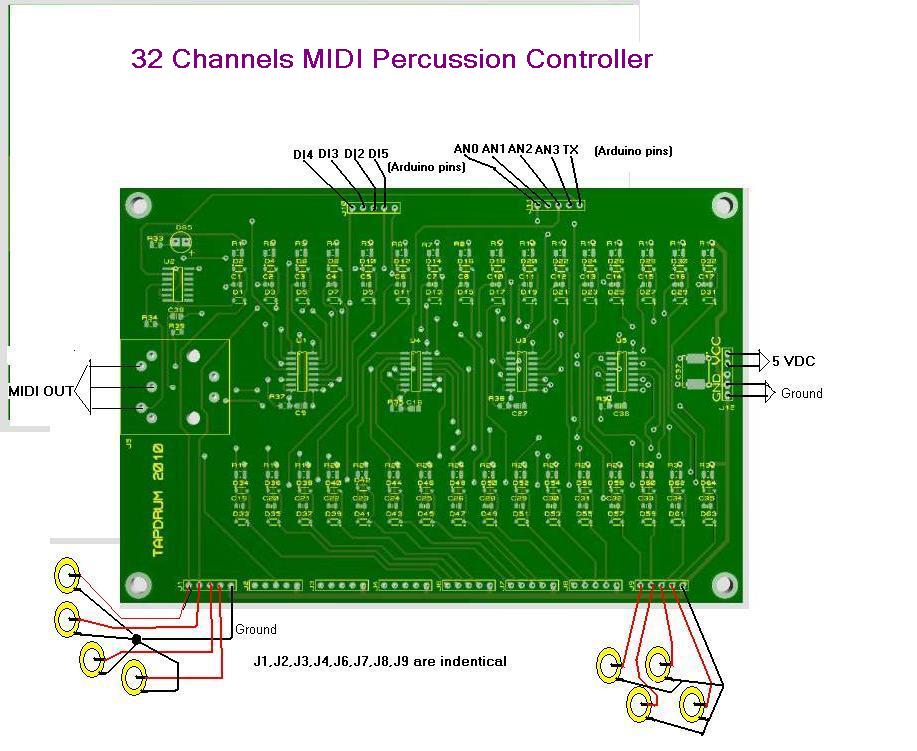

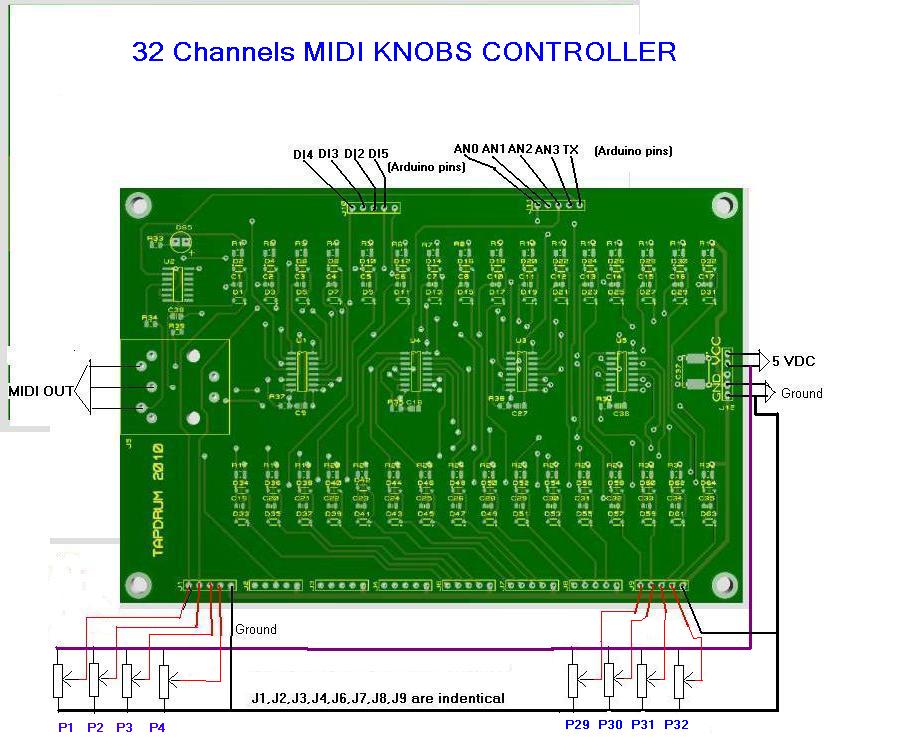

input transducer: piezo elements (active), potentiometers (passive)
output: 1 MIDI output
indicator: MIDI out LED
I/O interface : 3 digital input address pins
1 digital input inhibit pin
4 Analog output pins
these I/O pins can be easily adapted to any
microcontroller system including Arduino
Size: approx: 4x6 inches ( 10x 15 cm)

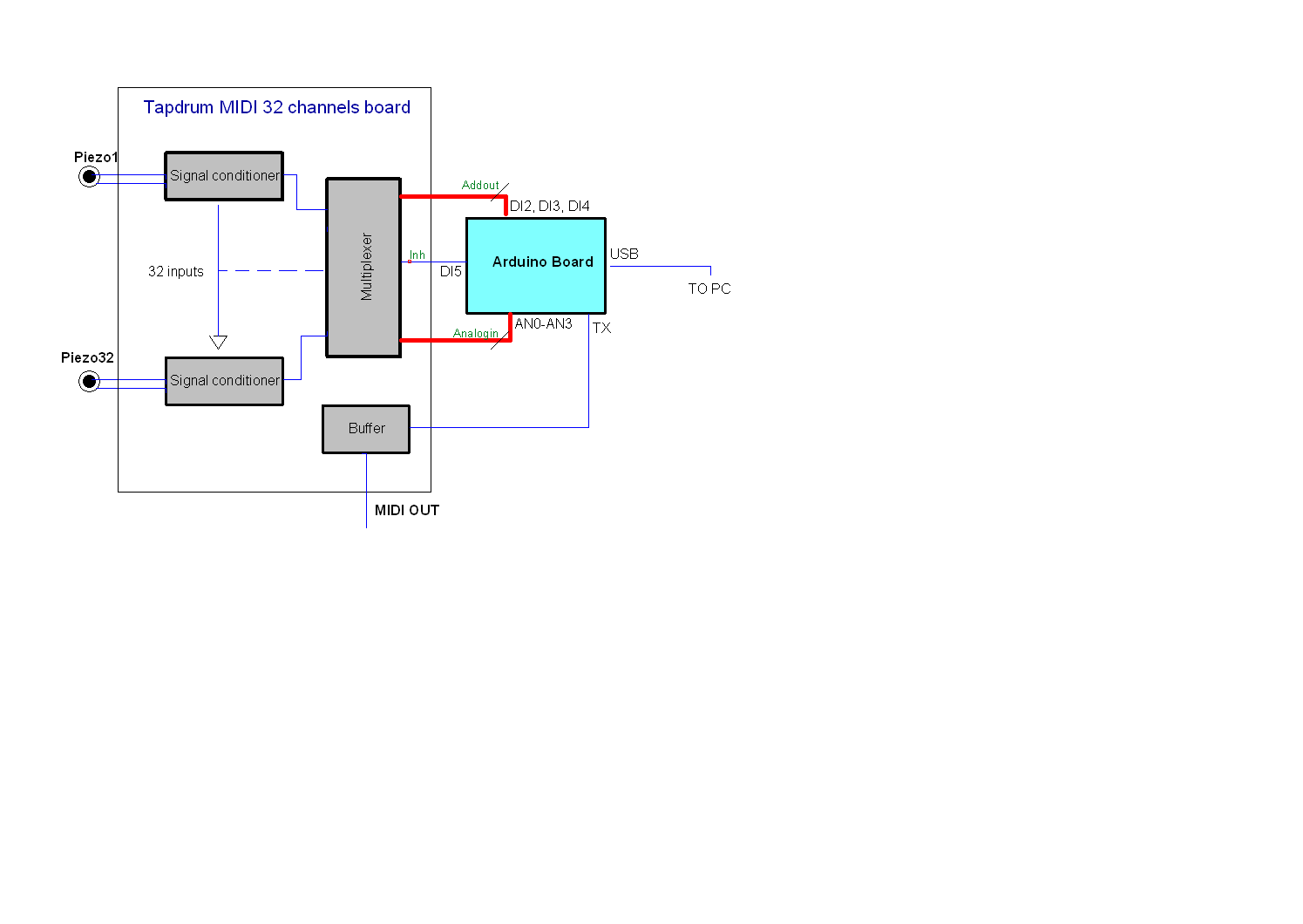

32 input triggers board + Arduino board :
operating voltage : 5 VDC ( prewired to Arduino power supply)
input : 32 inputs
input transducer: piezo elements (active), potentiometers (passive)
output: 1 MIDI output
indicator: MIDI out LED
I/O interface : 3 digital input address pins
1 digital input inhibit pin
4 Analog output pins
all those Pins are prewired to Arduino I/O ports
Arduino board: loaded with standard MIDI sketch for easy testing
Arduino USB port: utilizing this port to send MIDI notes to PC
( see "download MIDI sketches" ).
Size: approx: 4x6 inches ( 10x 15 cm) + Arduino size
